Simplex 4100-6103 IDNAC

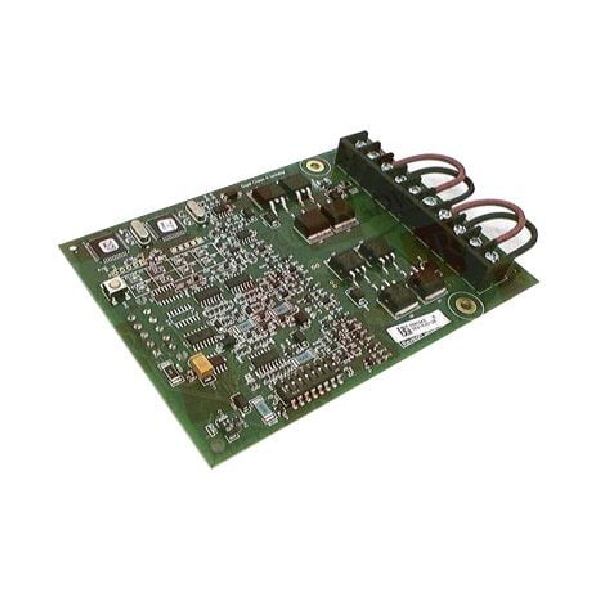

Simplex 4100-6103 Dual Class A IDNAC Isolator (DCAI), converts a single Class B IDNAC SLC input to two Class A or two Class B SLC outputs; provides short circuit isolation between each Class A or B output circuit; connect up to two DCAI Modules per IDNAC SLC input up to a maximum of 6 DCAI Modules per EPS each isolated output SLC used requires one
IDNAC address the total current remains controlled by the Class B input source SLC at 3 A maximum; each isolated loop supports up to 30 device addresses (note, up to 30 additional device addresses may be installed between each 4905-9929 TrueAlert Addressable Isolator+ Module, not to exceed the maximum address and unit loading specifications for the IDNAC channel)
